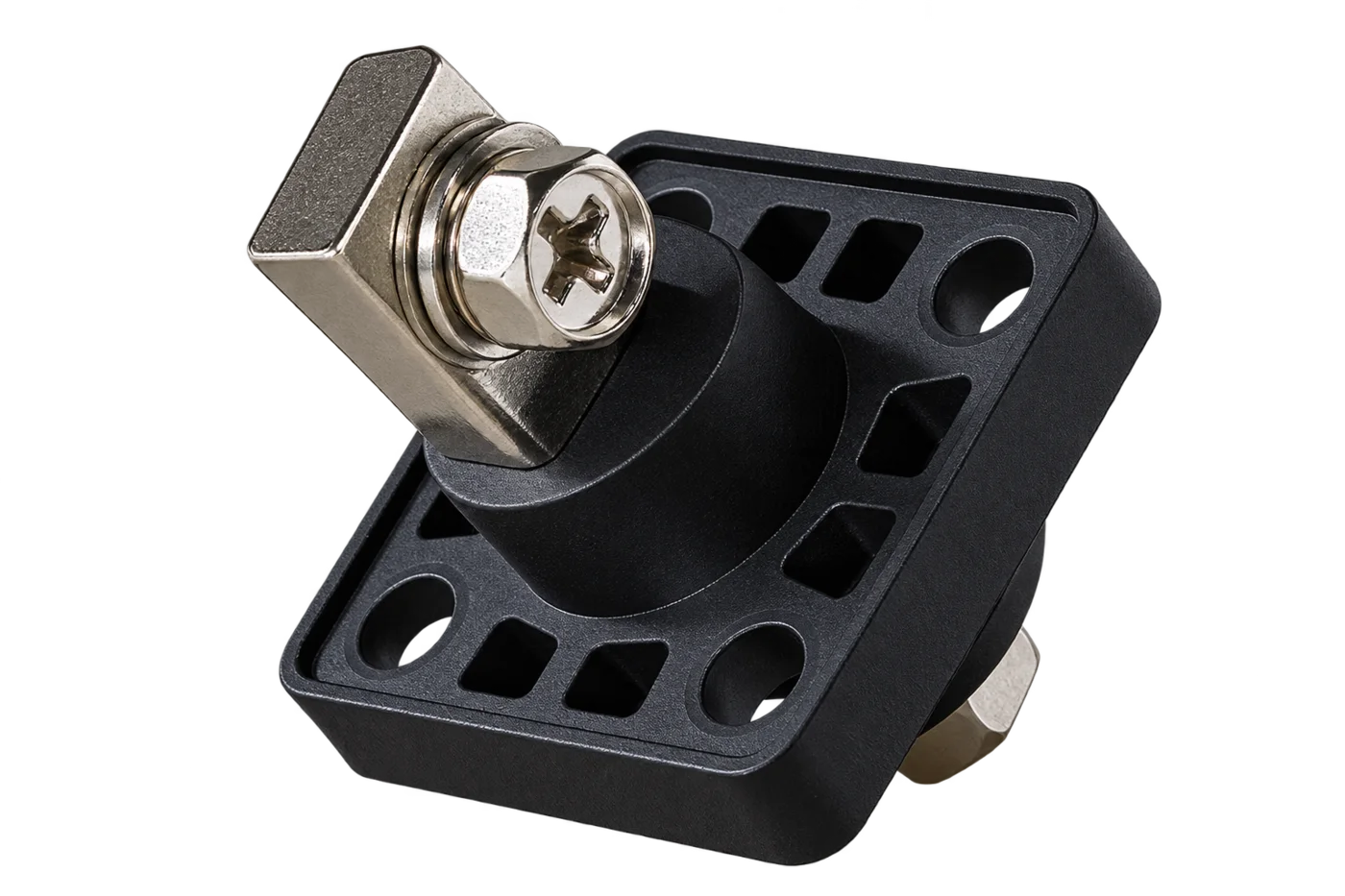

Nickel-plated brass terminal
The conductive terminal passes power through the enclosure and provides connection points on both sides.
Connectors
ESS Connector — C Type
A power distribution feedthrough terminal engineered for high-capacity energy storage systems. Nickel-plated brass core in a V-0 flame-retardant nylon housing, with waterproof gaskets and insulating caps included. Rated 100A to 200A continuous.
Continuous current rating
- Screws
- M5 + M5
- Test wire
- 6 & 6 AWG
- Verified temperature rise
- 26.1 °C rise @ 100A
Single unit (B2C)
$8.40
Ships in 3–5 business days from stock · duties excluded
1
Bulk pricing (B2B) · MOQ 100
Request quote100–499 units
$6.20
500–1,999 units
$5.35
2,000+ units
$4.60
- Nickel-plated brass core for low resistance under sustained load
- V-0 flame-retardant nylon housing, 2200 V AC withstand voltage
- Silicone waterproof gaskets and insulating terminal caps included
- Square chassis-mount profile for busbar interconnection through enclosures
Component breakdown
Terminal, nut, cap and mounting interface
Detail views show how the connector is assembled through an enclosure. Included hardware and screw sizes vary by model; verify the selected variant and technical drawing before production installation.

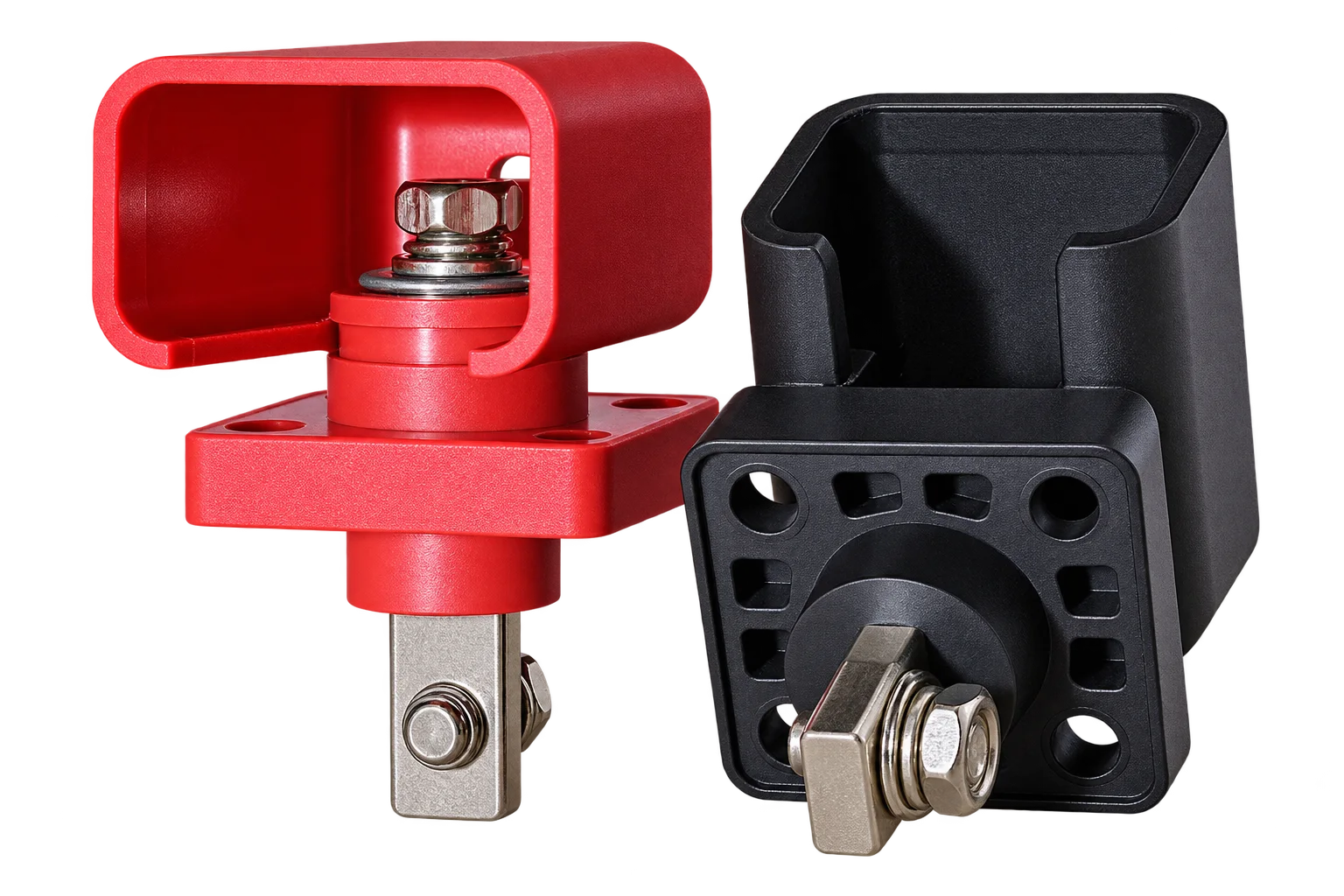

Nut and washer stack
The fastening stack secures the cable lug or busbar connection. Confirm final torque requirements with EVTOP before installation.

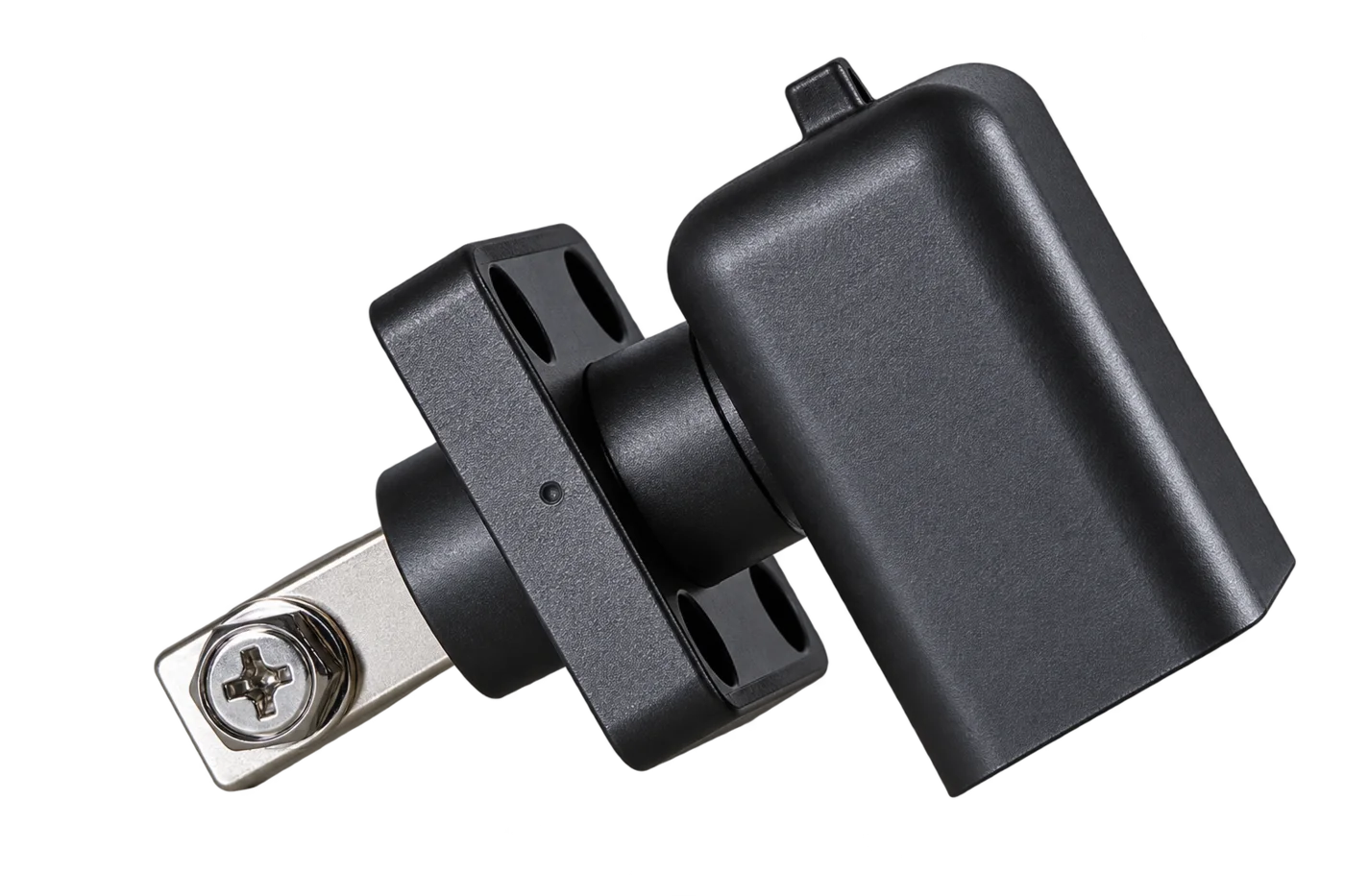

Insulating terminal cap
The removable V-0 nylon cap shields the exposed connection while retaining access for assembly and inspection.

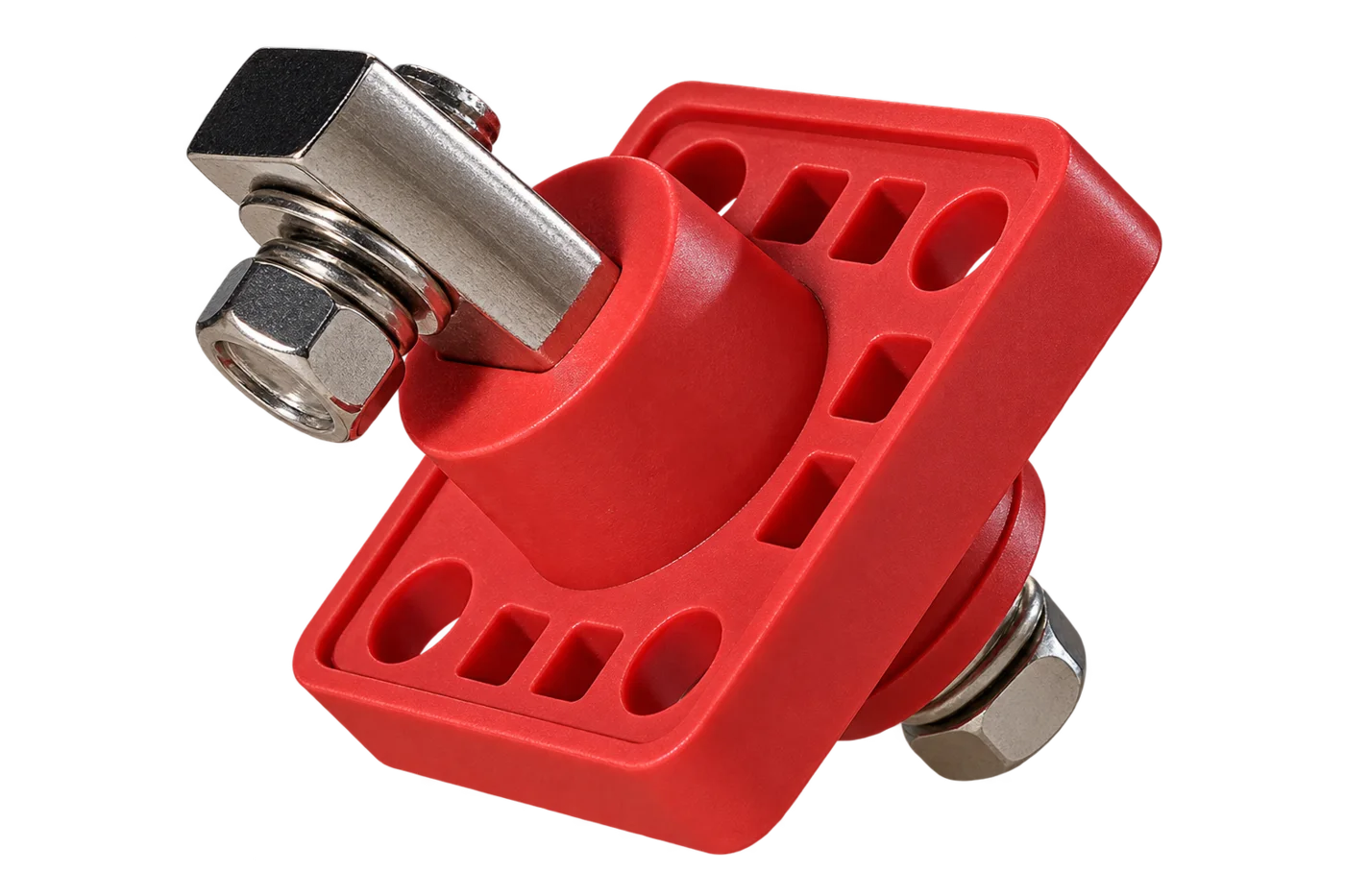

Mounting flange and sealing interface
The square four-hole flange mounts through the enclosure; the specification lists a silicone sealing gasket.
Technical specifications
- Product type
- C type feedthrough terminal
- Housing material
- V-0 nylon (flame retardant)
- Terminal material
- Nickel-plated brass
- Screw material
- M4 iron (stainless steel optional)
- Sealing gasket
- Silicone
- Withstand voltage
- 2200 V AC
- Continuous current
- 100A / 120A / 150A / 200A
- Colours
- Red and black
- Temperature rise limit
- ≤ 45 K at rated current (1 hr)
- Flame test
- 10 s burn, two applications — passed
Delivery by region
United States3–6 business days
DHL Express / UPS — Duties prepaid on orders over $500.
United Kingdom3–6 business days
DHL Express — VAT and duties are confirmed with the order.
EU (DE, NL and similar)4–8 business days
DHL Express / road freight — VAT and import terms are confirmed before payment.
Canada5–9 business days
UPS — Brokerage included on express.
Ukraine10–21 business days
Courier via EU hub — Routes are longer and freight costs elevated due to the war. We quote realistic dates before dispatch rather than promising US/UK timelines.
Engineering reference

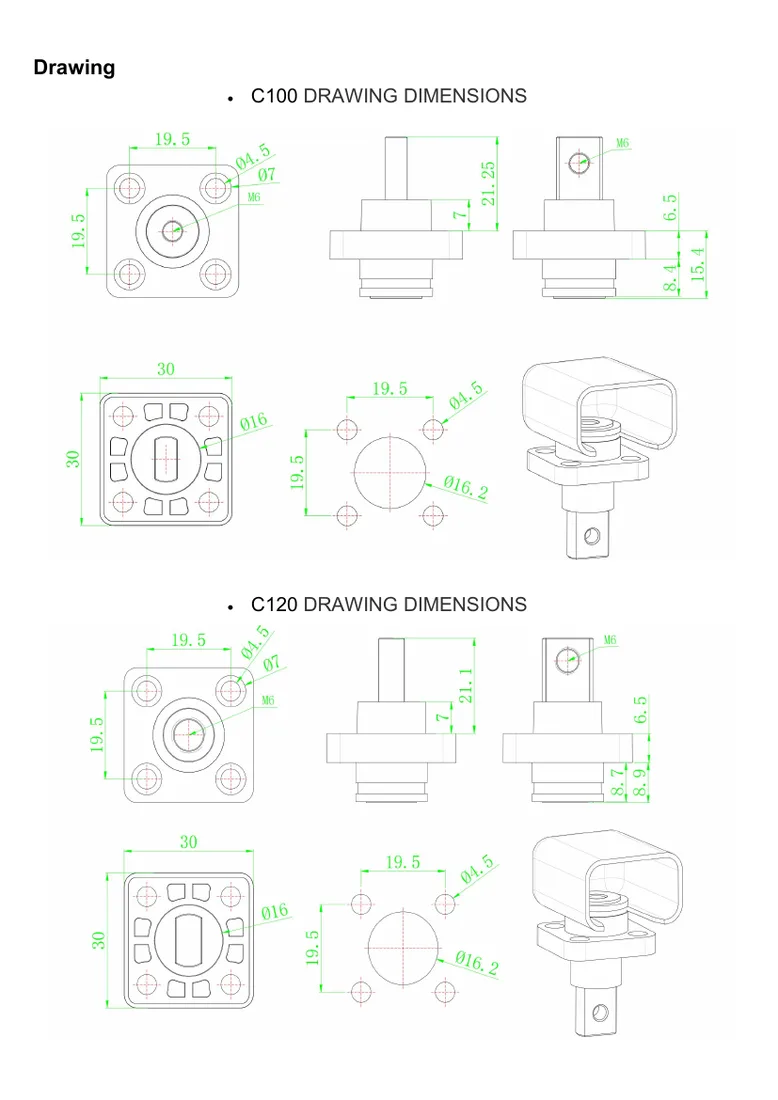

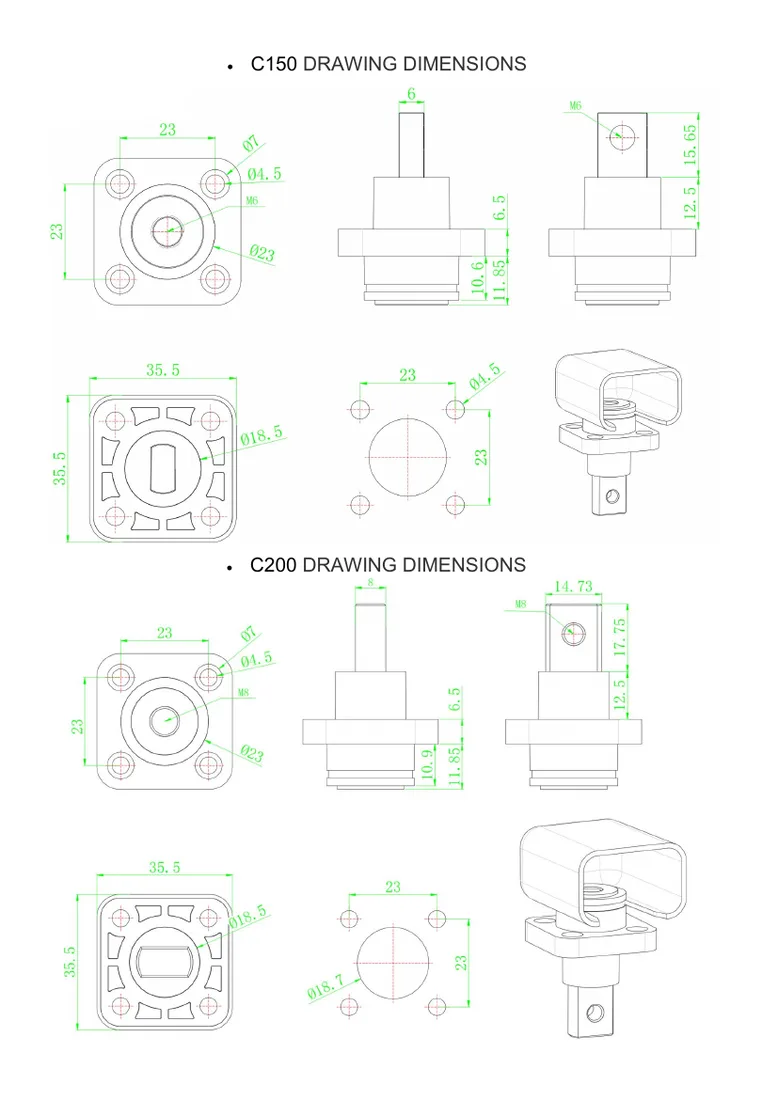

Dimensional drawings

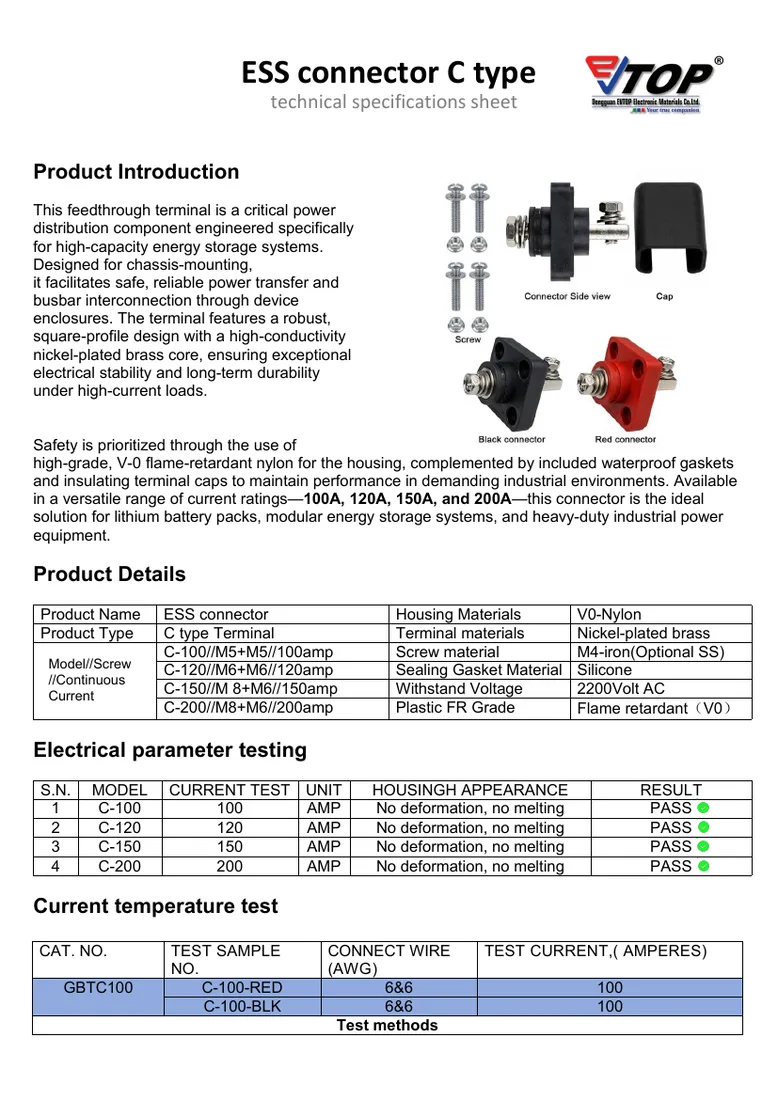

Drawings are extracted from the supplied technical specification sheet. Use the PDF as the controlled reference and confirm tolerances before enclosure tooling.
